Brembo Racing 64 mm Axial Rear Billet 4P Caliper Cod.X20.61.01

Brembo Racing 64 mm Axial Rear Billet 4P Caliper Cod.X20.61.01

UVP: Original price was: € 947,23.Current price is: € 799,99.

excl. VAT

Only 2 left in stock (can be backordered)

Only 2 left in stock (can be backordered)

SKU: BRE206101 Category:

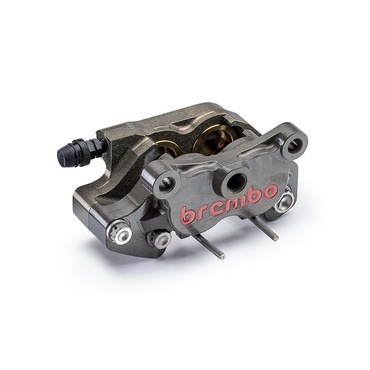

It is a rather lightweight racing caliper designed specifically for riders who use the rear brake heavily.
This caliper is in two pieces and is made entirely from billet. This machining, which uses sophisticated numerically controlled equipment, provides maximum stiffness and lightweight values which are reflected in its absolutely excellent performance.
Inside it houses four 24 mm diameter pistons. The caliper should be hand mounted and the screw tightening torque should be objectivated. To be mounted this caliper requires a specific adaptor bracket.
This caliper is used with excellent performance on all Super Sport bikes and racing bikes such as those raced in Moto2, Moto3 and MotoGP. It has also become increasingly popular in Southeast Asia where it is used as a front brake in “underbone” category competitions where the engine is positioned under the frame. his caliper can be used with rear discs with both 24 mm and 30 mm rotor height.
This Component is designed and manufactured to be used exclusively in racing competitions and, therefore, the product shall be installed  through specific adaptors not included in the packaging of the component and by highly qualified and competent professionals working in the “racing” field. Please contact our distributor for any further clarification.

TECHNICAL FEATURES
Position REAR
Caliper Body 2-PIECES
Ø Pistons mm 24
Pistons Q.ty 4
Disc height mm 24-30
Material Billet aluminium
Surface protection Hard anodized
Piston material Titanium
Weight w/o pads (gr) 262
Mounted pads included No
Offset (mm) 16,5
Note W pad for 24 mm rotor height

Y pad for 30 mm rotor height

Additional information

Weight 1 kg
Dimensions 27 × 15 × 9 cm
