YZF-R1 2020- Framegroup OEM Parts
YZF-R1 2020- Framegroup OEM Parts
€ 2,54 – € 2499,99
excl. VAT

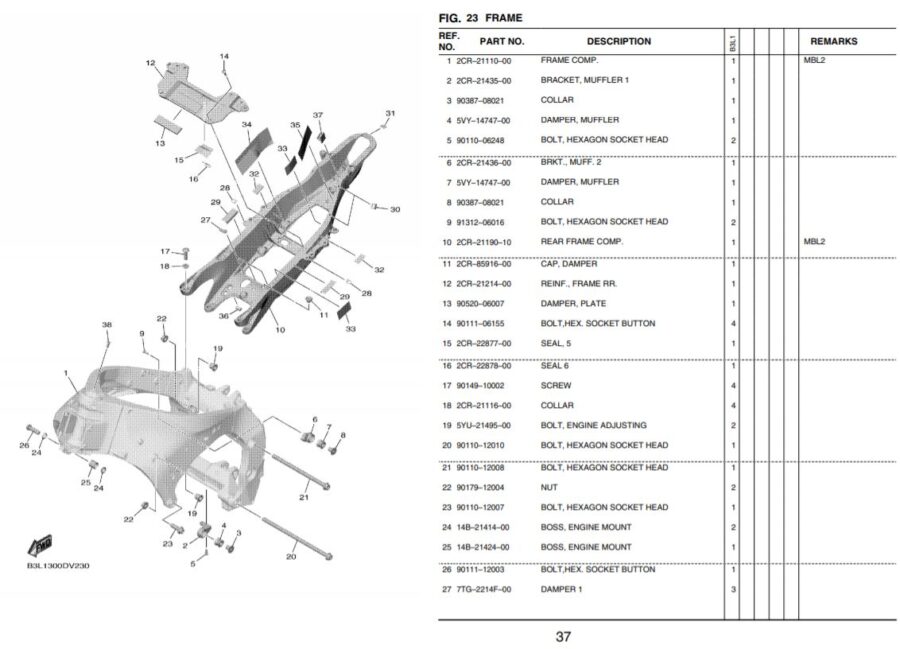

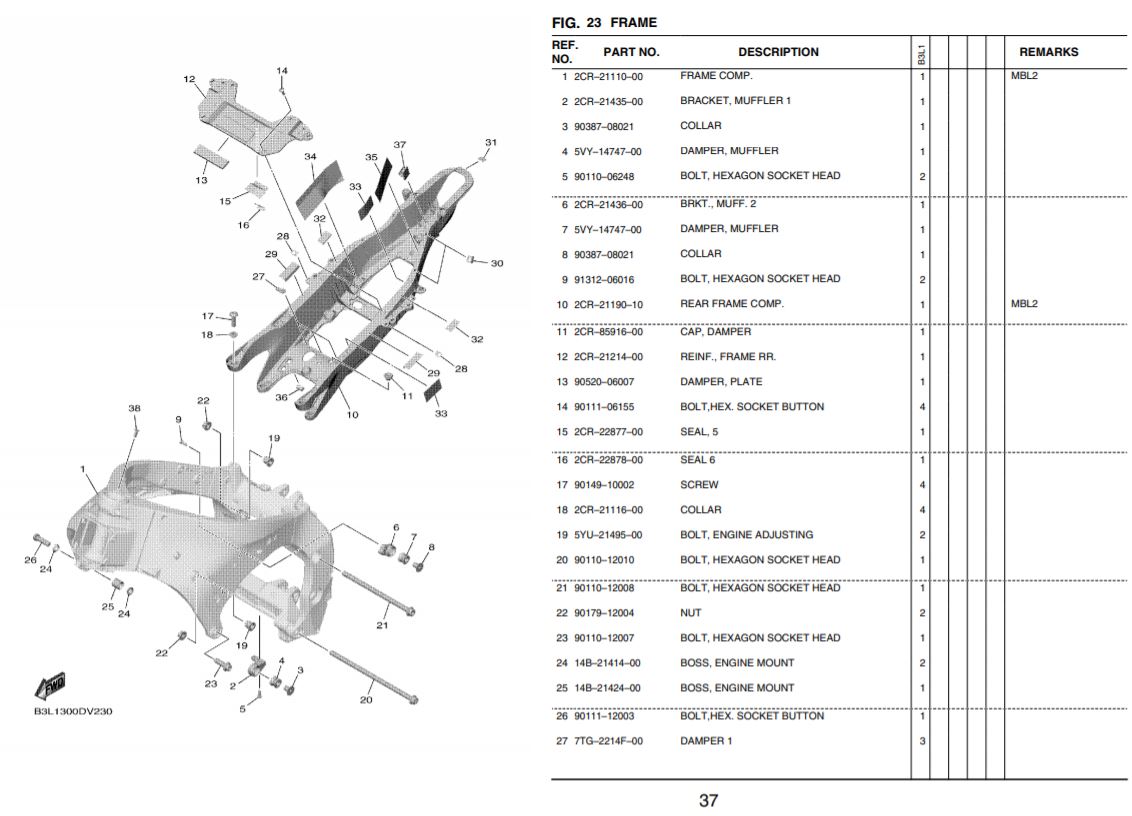

| Ref. | Teile Nummer | Beschreibung | Stk | Neu | Bemerkung |
|---|
| 01 | 2CR-21110-00 | RAHMEN KOMPL. | 1 | MBL2 | |
| 02 | 2CR-21435-00 | KONSOLE, SCHALLDAMPFER 1 | 1 | ||
| 03 | 90387-08021 | HULSE | 1 | ||
| 04 | 5VY-14747-00 | DAMPFER, SCHALLDAMPFER | 1 | ||
| 05 | 90110-06248 | INNENSECHSKANTSCHRAUBE | 2 | ||
| 06 | 2CR-21436-00 | KONSOLE | 1 | ||
| 07 | 5VY-14747-00 | DAMPFER, SCHALLDAMPFER | 1 | ||
| 08 | 90387-08021 | HULSE | 1 | ||
| 09 | 91312-06016 | INNENSECHSKANTSCHRAUBE | 2 | ||
| 10 | 2CR-21190-10 | HINTERRAHMEN KOMPL. | 1 | MBL2 | |
| 11 | 2CR-85916-00 | KAPPE | 1 | ||
| 12 | 2CR-21214-00 | VERSTARKUNG. | 1 | ||
| 13 | 90520-06007 | ZIERVERKLEIDUNG, ABDECKUNG | 1 | ||
| 14 | 90111-06155 | SCHRAUBE | 4 | ||
| 15 | 2CR-22877-00 | DICHTUNG 5 | 1 | ||
| 16 | 2CR-22878-00 | DICHTUNG 6 | 1 | ||
| 17 | 90149-10002 | SCHRAUBE | 4 | ||
| 18 | 2CR-21116-00 | HULSE | 4 | ||
| 19 | 5YU-21495-00 | EINSTELLSCHRAUBE | 2 | ||
| 20 | 90110-12010 | INNENSECHSKANTSCHRAUBE | 1 | ||
| 21 | 90110-12008 | INNENSECHSKANTSCHRAUBE | 1 | ||
| 22 | 90179-12004 | MUTTER | 2 | ||
| 23 | 90110-12007 | INNENSECHSKANTSCHRAUBE | 1 | ||
| 24 | 14B-21414-00 | NABE, MOTORAUFHANGUNG | 2 | ||
| 25 | 14B-21424-00 | NABE, MOTORAUFHANGUNG | 1 | ||
| 26 | 90111-12003 | SCHRAUBE | 1 | ||
| 27 | 7TG-2214F-00 | DAMPFER 1 | 3 | ||
| 28 | 2CR-22873-00 | DICHTUNG 1 | 2 | ||
| 29 | 2CR-22874-00 | DICHTUNG 2 | 2 | ||
| 30 | 2CR-22875-01 | DICHTUNG 3 | 4 | ||
| 31 | 5SL-21268-00 | DICHTUNG | 1 | ||
| 32 | 2CR-22876-00 | DICHTUNG 4 | 2 | ||
| 33 | 5JW-2164K-00 | WINKELBLECH 5 | 2 | ||
| 34 | 5C7-21779-00 | POSITIONIERDAMPFER 2 | 1 | ||
| 35 | 5TH-21268-01 | DICHTUNG | 1 | ||
| 36 | 13S-28415-00 | DAMPFER 1 | 1 | ||
| 37 | 90464-13004 | SCHELLE | 1 | ||
| 38 | 90269-05055 | NIET | 1 |
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | N/A |
| Partnumber | 01 2CR-21110-00 Frame comp., 02 2CR-21435-00 Bracket Muffler, 03 90387-08021 Collar, 10 2CR-21190-10 Rear Frame, 20 90110-12010 Bolt Hexagon Socket Head, 21 90110-12008 Bolt Hexagon Socket Head, 22 90179-12004 Nut, 23 90110-12007 Bolt |
