YZF-R1 17-22 Enginecovers
YZF-R1 17-22 Enginecovers
€ 4,87 – € 265,61
excl. VAT

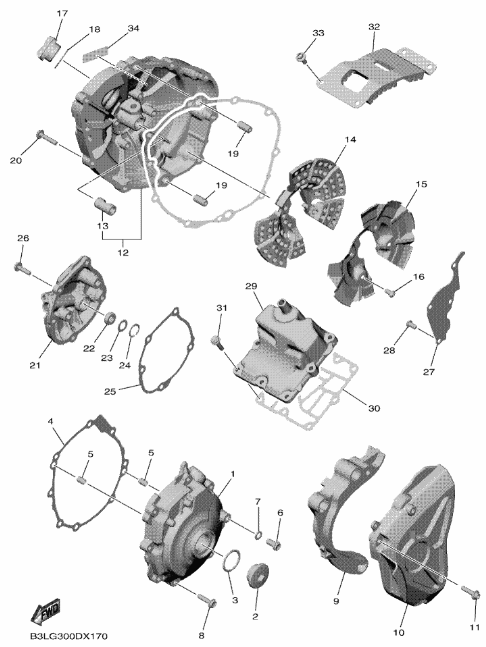

| 01 | B3L-15411-00 | DECKEL, KURBELGEHAUSE 1 | 1 | MBL2 | |
| 02 | 90340-27007 | VERSCHLUSSSCHRAUBE, ZYL. | 1 | ||
| 03 | 93210-27370 | O-RING | 1 | ||
| 04 | 2CR-15451-00 | DICHTUNG, KURBELGEHAUSEDECK. | 1 | ||
| 05 | 99530-08012 | PASSTIFT | 2 | ||
| 06 | 90109-08239 | SCHRAUBE | 1 | ||
| 07 | 90430-08143 | DICHTUNG | 1 | ||
| 08 | 90109-06300 | SCHRAUBE | 8 | ||
| 09 | 2CR-15377-10 | FUHRUNG, EINLASS | 1 | ||
| 10 | 2CR-15418-00 | DECKEL, KETTENKASTEN | 1 | ||
| 11 | 90110-06387 | INNENSECHSKANTSCHRAUBE | 3 | ||
| 12 | BX4-15421-00 | DECKEL, KURBELGEHAUSE 2 | 1 | MBL2 | |
| 13 | 5VY-15541-00 | .HULSE | 1 | ||
| 14 | 2CR-15316-00 | DAMPFER 1 | 1 | ||
| 15 | 2CR-15492-00 | DECKEL | 1 | ||
| 16 | 90149-06158 | SCHRAUBE | 4 | ||
| 17 | 2CR-15363-01 | OLSCHRAUBE | 1 | ||
| 18 | 93210-29574 | O-RING | 1 | ||
| 19 | 91810-20002 | PASSTIFT | 2 | ||
| 20 | 90109-06301 | SCHRAUBE | 10 | ||
| 21 | BX4-15416-01 | DECKEL, OLPUMPE | 1 | MBL2 | |
| 22 | 93101-10004 | WELLENDICHTRING | 1 | ||
| 23 | 90201-12166 | UNTERLEGSCHIBE | 1 | ||
| 24 | 99009-19500 | SPRENGRING | 1 | ||
| 25 | 2CR-15456-00 | DICHTUNG, OLPUMPENDECKEL 1 | 1 | ||
| 26 | 90109-06299 | SCHRAUBE | 5 | ||
| 27 | 2CR-11165-00 | PLATTE, BELUFTUNG | 1 | ||
| 28 | 90149-06158 | SCHRAUBE | 4 | ||
| 29 | 2CR-15413-00 | DECKEL | 1 | ||
| 30 | 2CR-15462-00 | DICHTUNG, KURBELGEHAUSEDECK.3 | 1 | ||
| 31 | 90109-06300 | SCHRAUBE | 8 | ||
| 32 | 2CR-15113-01 | PLATTE | 1 | ||
| 33 | 90110-06108 | INNENSECHSKANTSCHRAUBE | 4 | ||
| 34 | B5Y-1548B-00 | OLEN SIE, LAVEL | 1 |
Additional information
| Weight | N/A |
|---|---|
| Partnumber | 01 B3L-15411-00 Alternator Cover, 02 90340-27007 Plug, 03 93210-27370 O-RING, 04 2CR-15451-00 Gasket Alternator Cover, 08 90109-06300 Bolt, 12 BX4-15421-00 Cover 2 Clutch, 17 2CR-15363-01 Oilplug, 18 93210-29574 O-RING, 20 90109-06301 Bolt, 21 BX4-15416-01 Cover Oilpump, 22 93101-10004 Seal, 25 2CR-15456-00 Gasket Oilpump, 26 90109-06299 Bolt |
